Air Cooled Cube Ice Machine For Business 350P 400P 500P

Short Description:

Cube ice machine is a kind of ice maker.
Ice machines are found in hotels, bars, banquet halls, Western restaurants, snack bars, convenience stores, and cold drinks stores, where ice cubes are needed to satisfy everyone who needs ice ice.
The cube of ice are clear and clean, and they are efficient, safe, energy-saving, durable and environmentally friendly. They are your first choice for ice making.

Product Detail

Product Tags

Product Introduction


Cube ice machine from Shanghai Jingyao Industrial Co.,Ltd have different capacities, such as 544kgs/24h, 1088kgs/24h etc. Please kindly check below for more details. It also has air cooled and water cooled. If you have requirements on cooling type, please feel free to tell us!

Model No. Daily capacity (kgs/24hours) Ice storage bin capacity (kgs) Input power (Watt) Standard power supply Overall size (LxWxH mm) Available cube ice size (LxWxH mm)
Integrated Type (Built-in ice storage bin, standard cooling type is air cooling, water cooling is optional)
JYC-90P 40 15 380 220V-1P-50Hz 430x520x800 22x22x22
JYC-120P 54 25 400 220V-1P-50Hz 530x600x820 22x22x22
JYC-140P 63 25 420 220V-1P-50Hz 530x600x820 22x22x22
JYC-180P 82 45 600 220V-1P-50Hz 680x690x1050 22x22x22/22x11x22
JYC-220P 100 45 600 220V-1P-50Hz 680x690x1050 22x22x22/22x11x22
JYC-280P 127 45 650 220V-1P-50Hz 680x690x1050 22x22x22/22x11x22
Combined Type (Ice maker part and ice storage bin part were separated, standard cooling type is water cooling, air cooling is optional)
JYC-350P 159 150 800 220V-1P-50Hz 560x830x1550 22x22x22/22x11x22
JYC-400P 181 150 850 220V-1P-50Hz 560x830x1550 22x22x22/22x11x22
JYC-500P 227 250 1180 220V-1P-50Hz 760x830x1670 22x22x22/22x11x22
JYC-700P 318 250 1350 220V-1P-50Hz 760x830x1740 22x22x22/29x29x22/22x11x22
JYC-1000P 454 250 1860 220V-1P-50Hz 760x830x1800 22x22x22/29x29x22/40x40x22
JYC-1200P 544 250 2000 220V-1P-50Hz 760x830x1900 22x22x22
JYC-1400P 636 450 2800 380V-3P-50Hz 1230x930x1910 22x22x22/29x29x22/22x11x22
JYC-2000P 908 450 3680 380V-3P-50Hz 1230x930x1940 22x22x22/29x29x22/40x40x22
JYC-2400P 1088 450 4500 380V-3P-50Hz 1230x930x2040 22x22x22

PS. The voltage of ice machine could be customized, such as 110V-1P-60Hz.

Please feel free to contact us if you need larger capacity of cube ice machine, such as 2/5/10 ton cube ice machine etc.



Working principle

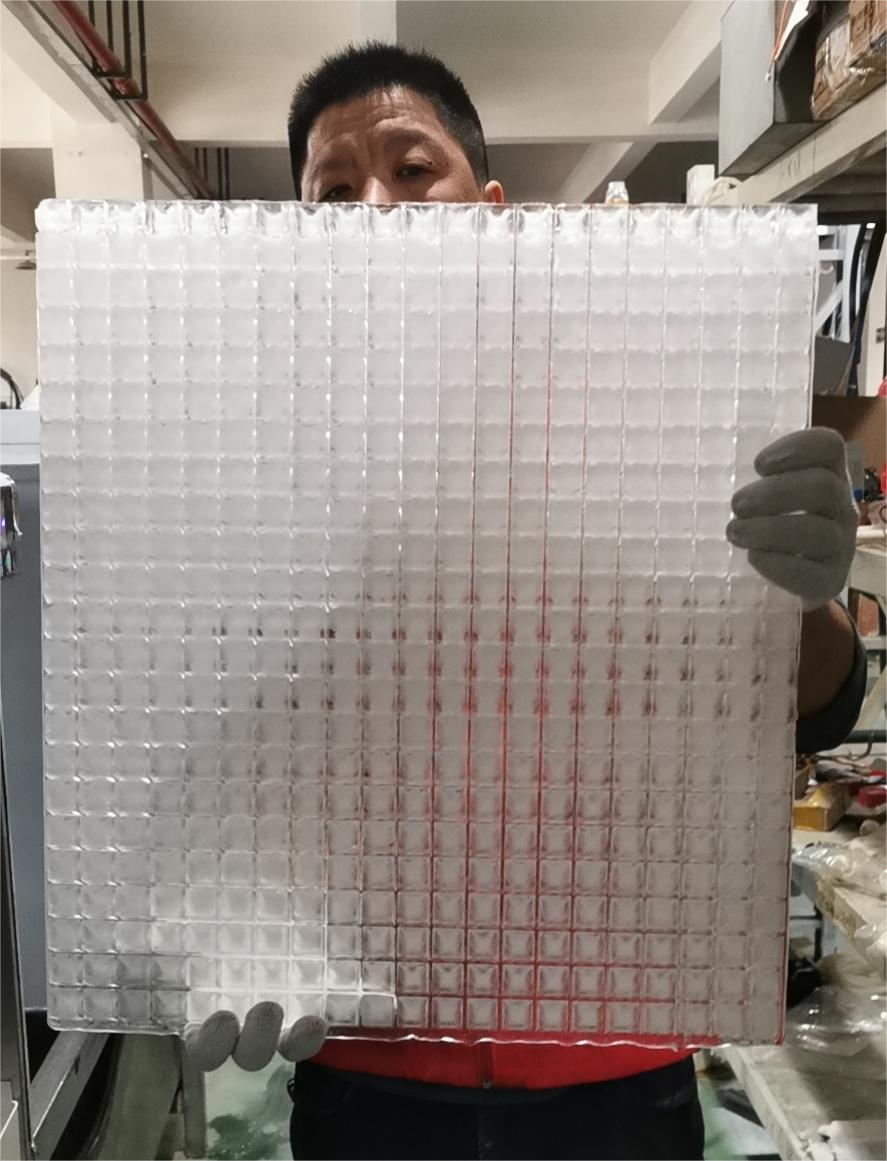

Cube ice machines freeze water in batches. Those with vertical evaporators have a water dispensing tube at the top that creates a waterfall effect. As the water flows into and out of each cell in the evaporator more is frozen until the cells fill with completely frozen ice.Once the ice is ready to drop, the ice machine goes into a harvest cycle. The harvest cycle is a hot gas defrost, which sends hot gas from the compressor to the evaporator. A hot gas cycle defrosts the evaporator just enough to release the cubes into the ice storage bin (or ice dispenser) below.
